Spraying polyurethane foam on the 14th floor of a high-rise, a parking structure ramp, or a mid-rise podium deck is not the same job you do in a crawlspace — just higher up. It's a fundamentally different equipment problem. The physics of getting heated, pressurized, plural-component chemical from a ground-level trailer up to an applicator working at height work against you at every step. Contractors who treat elevated work as "the usual setup with more hose" end up fighting off-ratio foam, blown schedules, wasted material, and overspray claims.
This guide breaks down the real technical, logistical, and safety complexities of elevated SPF application — and why a compact, self-contained rig that goes up with the crew has become the smarter answer for high-rise, mid-rise, and hard-to-access work.
The first instinct on a tall building is to park the rig at grade and run hose up the side or through the stairwell. It works — until it doesn't. Here's what a 150–300 ft hose run actually does to your material.
Heated hose doesn't heat cold material; it keeps already-heated material from cooling as it travels. The longer the run, the more surface area is bleeding heat into the environment — and heat loss is worst at fittings, connections, and anywhere insulation is compressed or damaged. A documented temperature deviation of more than 10°F from the set point is a recognized cause of off-ratio foam and adhesion failure. On a cold concrete deck or a windy exterior floor plate, that heat loss gets dramatically worse.
Component A (iso) and Component B (resin) have different viscosities, and viscosity changes with temperature. If the two sides arrive at the gun at different temperatures, the volumetric ratio can be mechanically correct while the mass ratio drifts off. The result is the exact failure mode contractors dread: poor cell structure, weak adhesion, lingering odor from an incomplete cure, and callbacks.
Every 100 feet of quarter-inch heated hose at 2,000 psi introduces measurable pressure loss that the proportioner has to compensate for. Push the run too long and the machine is working at the edge of its envelope just to maintain pattern.
This isn't opinion — it's a hard limit. Graco specifies a maximum heated hose length for the Reactor E-30 class of machine (up to 320 ft including the whip hose), and notes that "the longer the hose, the higher its resistance and the lower the current it can carry. If the resistance becomes too high, the current flow will be too low to properly heat up the material, resulting in bad impingement mixing and spraying results." Long runs at height push you toward that ceiling fast.
Longer hose means more material to prime at startup and more to purge on color or material changes — every foot of hose you fill is material you may throw away. It also means more downtime. And a charged 200-foot dual hose assembly is heavy — a fully heated 200-foot assembly can exceed 80 lbs — which the applicator drags, lifts, and fights around railings, rebar, and finished work all day. Add whip, kink, and abrasion risk at every corner and you have a recipe for hose failures and fatigue.
Even if the hose physics worked, the logistics are their own challenge. Spray foam ships as 55-gallon drum sets. As SprayWorks Equipment describes it, "A paired set is two barrels consisting of one 'A' side (Activator/Isocyanate) and one 'R' side (Resin/Polyol) ranging in a combined liquid weight from 970 lb to 1050 lb" — and a single fully loaded drum can weigh up to 600 lbs. Getting that mass and your equipment to a working floor or rooftop means coordinating:
The tighter and lighter your equipment package, the more of these options are open to you — and the less you're held hostage by the crane schedule.
Electric proportioners like the Graco Reactor E-30 are power-hungry. Per Graco's Reactor 3 E-30 amperage spec, the 15 kW configuration requires "230V (Single Phase) 100 Amps; 230V (Three Phase) 62 Amps; 400V (Three Phase) 35 Amps" (Graco's own bare-machine table lists the single-phase figure as 97A). That's a serious electrical load, and how you feed it at height matters enormously.
Running a long, undersized extension cord up a building is a classic and costly mistake. Voltage drops over distance, and the National Electrical Code recommends conductors be sized "to prevent a voltage drop exceeding 3 percent at the farthest outlet" on a branch circuit, with total voltage drop on both feeders and branch circuits not exceeding 5 percent. Under-volt an electric proportioner and the motor draws more amps to do the same work, runs hotter, trips breakers, and — over time — burns up. On elevated jobs where a generator can't easily go, having the right power delivery built into the rig, with a proper shore-power cable engineered for the load, removes one of the biggest failure points before it starts.
Exterior and partially enclosed upper floors expose the crew and the foam to conditions that ground-level jobs don't face.
Wind speed at the height of a lift or upper floor routinely exceeds what's measured at grade, and it's the single biggest driver of overspray drift. This is not a minor housekeeping issue — it's a major liability. One SPF magazine account describes a crew spraying a rooftop when a single unexpected gust carried foam onto vehicles below. Industry practice for exterior spray is to halt operations when sustained winds exceed roughly 10–12 mph, and lower — 5–8 mph — in tight urban settings with cars and glass nearby. Because SPF overspray on a car can etch the finish, a single gust can turn into a claim covering dozens of vehicles.
SPF wants both ambient and substrate temperatures in a controlled window — manufacturers such as Gaco specify a substrate range of "30°F to 100°F" and require that "ambient temperature must be at least 5 degrees above dew point," because spraying within 5°F of the dew point causes condensation on the substrate and off-ratio, moisture-reactive foam. At height, substrate temperatures swing hard: a south-facing deck baking in the sun can push past the upper limit and flash the foam too fast, while the same surface at dawn can be below dew point. Being able to spray the right area at the right time of day — instead of when the crane finally frees up — is a real quality advantage.
Partially enclosed upper floors create a containment and air-quality challenge. Best practice for high-pressure SPF is to build a containment enclosure around the work zone and hold it under negative pressure — exhausting more air than you supply (a common rule of thumb is exhaust capacity roughly 10% greater than supply) so that any leakage flows into the zone, not out into finished areas or occupied floors below.
On top of that, elevated construction stacks on regulatory requirements:
High-rise and mid-rise jobs run on sequence. Crews move floor-to-floor and unit-to-unit in a set order, and spray foam typically goes in after framing inspection and before drywall, with a cure window (commonly around 24 hours) during which the area must be clear of other trades because of off-gassing. That means:
The contractor who can set up fast, spray a unit, break down, and roll to the next one wins the schedule.
Every problem above traces back to the same root cause: the machine is far from the gun, and moving the material that distance degrades it. The fix is to stop moving degraded material long distances — and instead move the machine to the work.

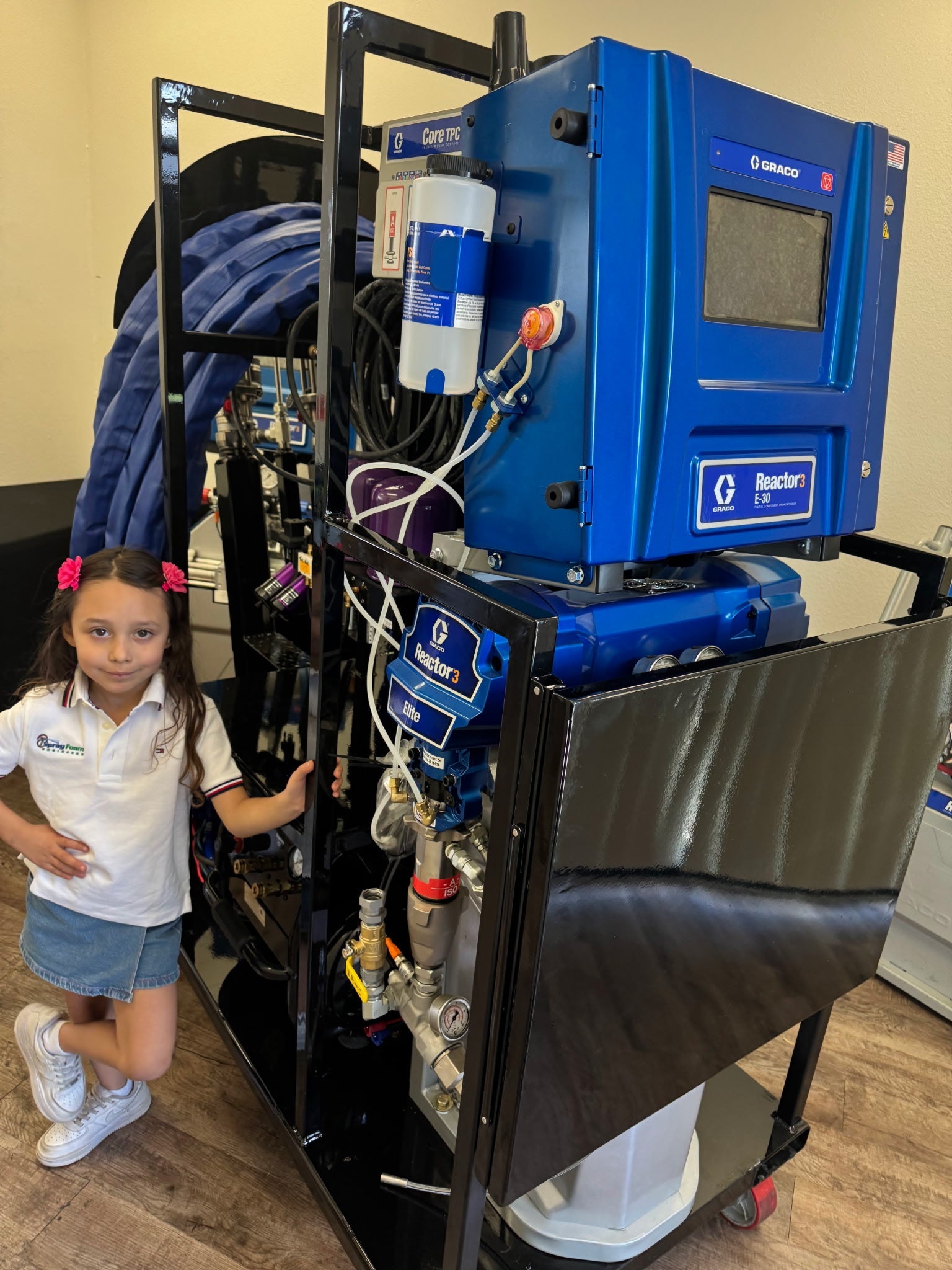

That's exactly what our newest offering is built for: the Graco Reactor 3 E-30 spray foam rig with a Graco AP Fusion gun and 100 feet of shore power cable, built onto a heavy-duty mobile cart. Here's how it directly answers the pain points above.
Because the proportioner rides right up to the work area, the heated material travels a short, controlled distance to the gun instead of degrading over a 200-foot vertical run. The package pairs the Reactor 3 E-30 (15 kW heaters, chemical supply and recirculation systems, Graco E1 chemical transfer pumps) with a 50 ft. Graco high-pressure heated hose and a 20 ft. Graco heated whip hose — short, manageable runs that keep A and B on temperature and on ratio where it matters: at the mix chamber. The Graco AP Fusion gun's air-purge design clears the mix chamber after each pull to reduce clogging and downtime.
The cart is engineered to fit through a regular doorway and rolls on heavy-duty casters, so the crew can wheel it down a hallway, into a unit, or across a floor plate. When it needs to go up, it's built to be lifted with a crane or lifted with a forklift — hoist or fork it onto a floor deck, loading platform, or rooftop, then simply roll it to the exact application area. No more staging the whole operation at grade and hoping the hose reaches.
The rig ships with 100 feet of shore power cable plus electric service installation with outlets, so the machine's roughly 97–100 amp (15 kW, 230V single-phase) demand is fed through cabling matched to the load rather than a random jobsite extension cord that starves the motor. It also carries its own 2.5 HP electric compressor, Tsunami air dryer, and pressurized air distribution system, so you're not chasing clean, dry air at height.
Short hoses prime and purge faster, wasting far less material on startup and color changes than a long vertical run. And because the whole system — proportioner, gun, hose, compressor, air dryer, power, and even a safety and cleanup station — travels as one wheeled unit, setup and breakdown between floors and units is quick. The rig comes with the parts you need to get running and stay running (a bottle of throat-seal, gun cleaning tools, spare gun parts, lithium grease, and a can of spray release) and a built-in safety station (organic-vapor full-face mask, coverall suit, safety glasses, eye wash station, first aid kit, nitrile gloves, fire extinguisher, and a mask/suit rack).
The listed price is $68,000 (marked down from $78,000), it's built on a powder-coated cart with an included work station, and equipment training comes standard at no additional charge. In-stock units are ready to ship, and others can often be built in as little as one week, with pickup at the Las Vegas or Austin locations or delivery available.
Elevated SPF work punishes the wrong equipment strategy. Long hose runs cost you temperature, ratio, pressure, material, and time; height multiplies every logistics, power, weather, and safety challenge. A compact, self-contained rig that can be wheeled through a doorway, forked onto a deck, or craned to a rooftop — and then spray with the machine right beside the applicator — solves the root problem instead of fighting the symptoms.
If you're bidding high-rise, mid-rise, parking structure, or any hard-to-access work, this is the rig built for it. See full specs and order the Graco E-30 Reactor 3 mobile-cart rig here. Questions about configuring it for your jobs? Call 1-800-674-FOAM (3626) — equipment training is included with every machine.
